All Servo No-Cam Series(No-Cam Series)

Spring making equipment

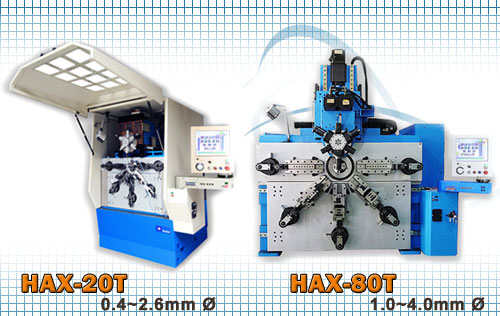

HAX SPECIFICATION
MODEL
HAX-10T
HAX-20T
HAX-40T
HAX-60T
HAX-80T
Wire Forming Capability

0.2~1.0 £p

0.4~2.6 £p

1.0~4.0 £p

2.0~6.0 £p

3.0~8.0 £p

Max Feeding Ratc 160M/min 125M/min 105M/min 76M/min 60M/min
Slide Max Stroke 65mm 100mm 130mm 1805mm 250mm
Max Power 12KW 18.5KW 34KW 52KW 92KW
Axes Controller MAX16 MAX16 MAX16 MAX16 MAX16
No of Roller 4PCS 4PCS 6PCS 6PCS 8PCS
No of Slide 5SET 5SET 5SET 5SET 5SET
3D Tool Turret U/D Stroke 100mm 1500mm 180mm 250mm 320mm
3D Tool Turret F/R Stroke

100mm

150mm

300mm

480mm

640mm

3D Tool Turret R/L Stroke L25mm/
R25mm
L75mm/
R75mm
L140mm/
R140mm
L250mm/
R250mm
L300mm/
R300mm
Down Panel Horizontal Stroke L35mm/
R35mm
L50mm/
R50mm
L50mm/
R50mm
L85mm/
R85mm
L80mm/
R80mm
Weight 1000KG 1500KG 4000KG 5200KG 12000KG
Dimensions (cm) 170*145*185 180*210*210 220*270*245 255*365*250 330*490*285
Voltage AC 220V 3 £p AC 220V 3 £p AC 220V 3 £p AC 220V 3 £p AC 220V 3 £p
We reserve the right to modify machine specifications for reason of improvement without prior notice!
Spring making equipment

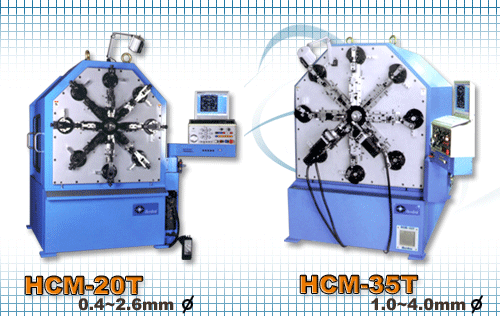

SPECIFICATIONS OF CNC SPRING SERIES
MODEL NO. HCM-20T HCM-35T
Forming Ability Wire Size

0.4~2.6 £p

1.0~4.0 £p
Slide Info Max Value ¡Ó359.99 ¡Ó359.99
Min Value ¡Ó0.01 ¡Ó0.01
Max Speed 200rpm 120rpm
Feed Info Max Value ¡Ó99999.99 ¡Ó99999.99
Min Value ¡Ó0.01 ¡Ó0.01
Max Speed 90M/min 90M/min
R. Q. Info Max Value ¡Ó359.99 ¡Ó359.99
Min Value ¡Ó00.01 ¡Ó00.01
Max Speed 400rpm 300rpm
R. W. Info Max Value ¡Ó359.99 ¡Ó359.99
Min Value ¡Ó0.01 ¡Ó0.01
Max Speed 60rpm 45rpm
Spinner Info Max Value ¡Ó359.99 ¡Ó359.99
Min Value ¡Ó0.01 ¡Ó0.01
Max Speed 400rpm 300rpm
Ea Info Max Value ¡Ó359.99 ¡Ó359.99
Min Value ¡Ó0.01 ¡Ó0.01
Max Speed 100rpm 70rpm
Motor Info Slide Motor 1KW 2KW
Feed Motor 2.7KW 4.5KW
R. Q. Motor 1KW 1KW
R. W. Motor 2.7KW 4.6KW
Spinner Motor 400W 1KW
Ea Motor 2KW 2.7KW
M/C Info Weight 1500KG 4000KG
Dimension 135X175X185 210X200X195
Others Ea Application YES YES
Axes Control MAX 16 MAX 16
Roller Number 4PCS 6PCS
Feed Length Unlimited Unlimited
Slide Stroke 100mm 130mm
Slide Number 8 Set 8 Set
Ambient Temp 0~45¢J 0~45¢J
Cooling Method Internal fan cooling Internal fan cooling
Voltage AC 220V 3£p AC 220V 3£p
We reserve the right to modify machine specifications for reason of improvement without prior notice!
CNC spring coilers

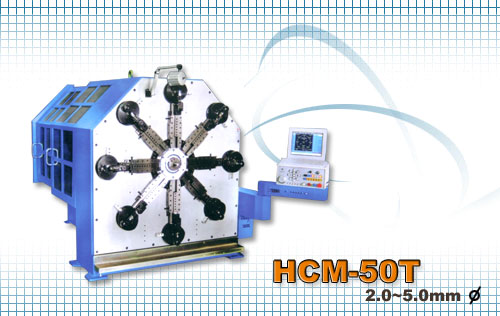

SPECIFICATIONS OF CNC SPRING SERIES
MODEL NO. HCM-50T
Forming Ability Wire Size

2.0~5.0 £p

Slide Info Max Value ¡Ó359.99
Min Value ¡Ó0.01
Max Speed 100rpm
Feed Info Max Value ¡Ó99999.99
Min Value ¡Ó0.01
Max Speed 70M/min
R. Q. Info Max Value ¡Ó359.99
Min Value ¡Ó00.01
Max Speed 200rpm
R. W. Info Max Value ¡Ó359.99
Min Value ¡Ó0.01
Max Speed 45rpm
Spinner Info Max Value ¡Ó359.99
Min Value ¡Ó0.01
Max Speed 150rpm
Ea Info Max Value ¡Ó359.99
Min Value ¡Ó0.01
Max Speed 50rpm
Motor Info Slide Motor 3.5KW
Feed Motor 7KW
R. Q. Motor 1.5KW
R. W. Motor 4.5KW
Spinner Motor 1.5KW
Ea Motor 4.5KW
M/C Info Weight 5200KG
Dimension 270X240X205
Others Ea Application YES
Axes Control MAX 16
Roller Number 8PCS
Feed Length Unlimited
Slide Stroke 150mm
Slide Number 8 Set
Ambient Temp 0~45¢J
Cooling Method Internal fan cooling
Voltage AC 220V 3£p
We reserve the right to modify machine specifications for reason of improvement without prior notice!
