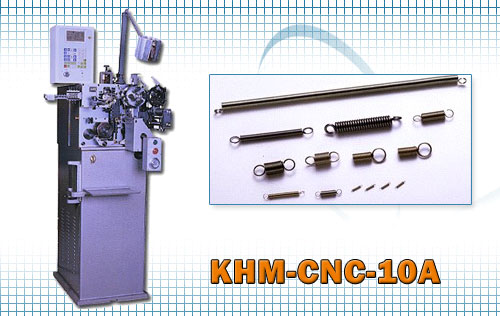

2-axis Extension Spring Former
SPECIFICATION
Wire doameter 0.15 - 1.0mm
Max. Spring O.D. 10mm
Max. spring length 100mm
Max. production rate 100pcs/min
Max. feed length Unlimited
Max. feed speed 40M/min
Motors capacity 0.75/0.75KW
Memory Steps 5000 STEPS
Power 220v, 3 £p
Dimension (mm) 950*840*1740

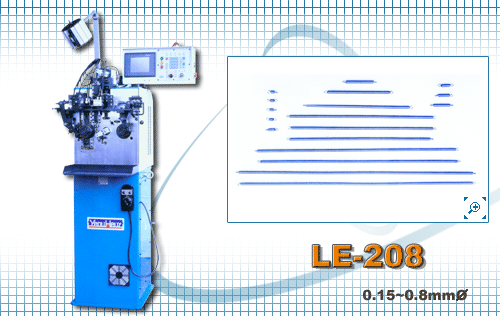

SPECIFICATION
Wire diameter (Steel wire) 0.15~0.8 mm
Max. spring O.D. 12 mm
Max. length of front leg Unlimited
Max. length of rear leg 4 Rings
Working direction Clockwise / Anticlockwise
Feed Axis Y Axis
Min. value ¡Ó 0.01 mm
Max. value ¡Ó 99999 mm
Max. feed speed 1400 mm/sec
Motor capacity AC750W
Cam axis X Axis
Min. value ¡Ó 0.1 Degree
Max. value ¡Ó 359.9 Degree
Max. production speed 120 RPM
Motor capacity AC750W
Power 3p 220V 50/60Hz
Pheumatic air pressure 4-5 kg/cm2
Machine gross weight 360 kg
Machine dimension 76*88*180 cm
