FM series

SPECIFICATION

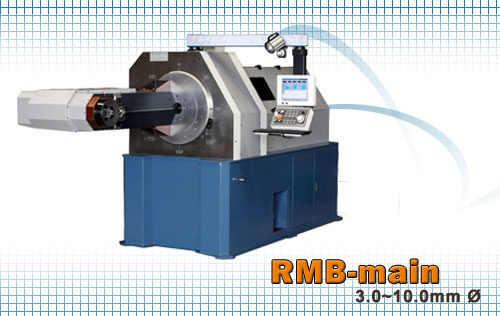

Model RMB - 100 RMB-120
Wire range (mm) Soft Wire 3.0 - 10.0 3.0 - 10.0
Streel Wire 30 - 6.0 30 - 8.0
Wire feeding length Unlimited Unlimited
Max. feeding speed 10 M/M 10 M/M
Position accuracy +/- 0.02 +/- 0.02
Clock wise / anticlock wise rotation +/- 360 +/- 360
Installed power 20KVA 20KVA
Machine dimension (mm) Length 37000 Length 37000
Width 12000 Width 12000
Height 18000 Height 18000
Machine weight 3400KGS 3400KGS
OPTION

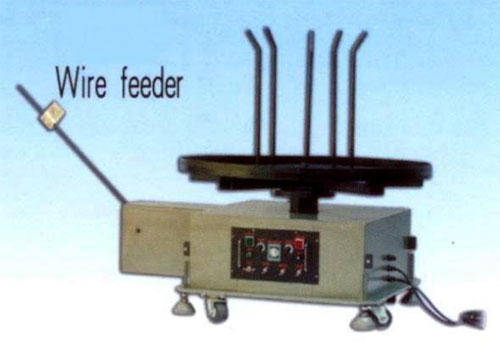

(1) Wire feeder 500 kgs or 1000 kgs or 1500 kgs
(2) Toolings
PRODUCTS SAMPLES
CNC spring coilers
Crash spring end grinders CNC spring making machines

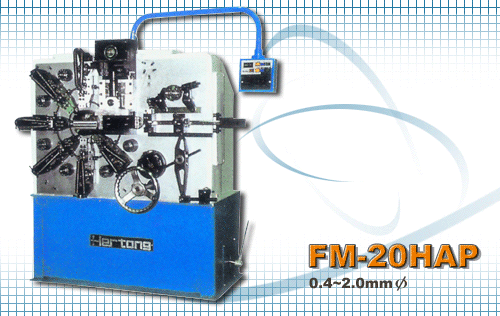

Automatic Wire & Stirp Forming Machines

Model

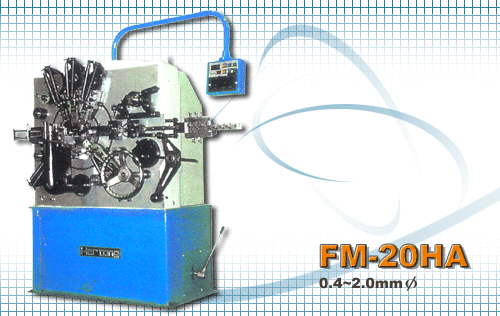

FM-20HA

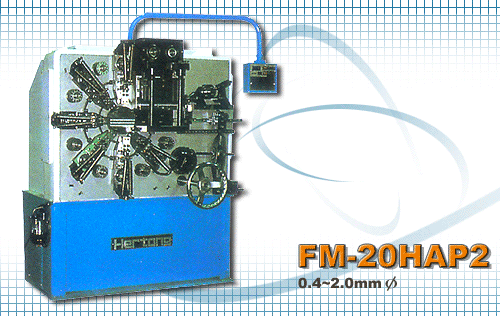

FM-20HAP2
Wire Range
0.6-2.0 mm F
0.6-2.0 mm F
Strip Size
0.5mm(T)*15mm (W)

0.5mm(T)*15mm (W)

Feed Length
195MM
195MM
Forming Slides
6
6
Max Stroke
60mm
60mm
Capacity
10-200 PCS/MIN
10-200 PCS/MIN
Motor Size
2HP
2HP
Press
-
Single Point
Press Weight
-
3 Tons
Machine Weight
1100 kgw
1200 kgw
Machine Dimension
L93XW60XH133
L113XW60

We reserve the right to modify machine specifications for reson of improvement without prior notice.
