Hanger
Making Machines |
 |

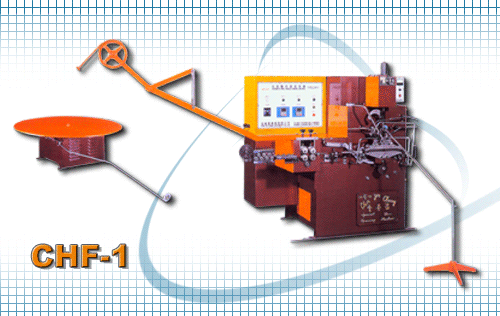

This is a fully-automated wire hanger making machine
that can conduct fast production of different sized
and shapes of wire hangers.
| CAPACITY |
3000/hr |
| P.V.C.
|
2.8mm~3.6mm |
| GALVANIZED
WIRE
|
1.8mm~2.8mm |
| |
2HP |
| WIRE
FEEDING STAND |
1/2HP. 2HP |
| NET
WEIGHT
|
1400Kg
including wire feeding stand |
| HANGER
SIZE |
13¡¨-14¡¨ children
15¡¨-18¡¨ adults
|
Wire Feeding Stand¡GThe stand
comes in two kinds, one is FS 1/2 HP type that has
a loading capacity of 300 kgs of iron wire and the
other is FS 2HP type that has loading capacity of
1,000 kgs of iron wire. This wire feeding stand
can operate automatically.
Performance¡GFast production; Power saving; available
with a 1.5KW main frame and FS1/2 hp-1kw and FS2HP-1.5KW
wire feeding stands
The space needed for the installation of the machine
(including main frame and wire feeding stands)is
around 7-meter long and 3-meter wide.
| AUTOMATIC
WIRE/PAPER TUBE HANGER MAKING MACHINE
(STRUT HANGER) MODEL CHF-2
|
| SPECIFICATIONS: |
| CAPACITY |
35 PARTS/MIN |
WIRE DIA. |
1.6mm ~ 2.0mm |
| HANGER SIZE |
14¡¨ ~ 16¡¨ |
WIRE FEEDER |
1HP/2HP |
| MOTOR SIZE |
2HP |
TOTAL NET WEIGHT |
1,400KGS |
DIMENSION
(PACKING)
|
MAIN: 75¡¨X52¡¨X78¡¨ |
WIRE FEEDER:
FS-1HP: 53¡¨X53¡¨X26¡¨
FS-2HP: 61¡¨X61¡¨X26¡¨
|
|
|
|
| |
| CHARACTERISTICS:
¡´
PERFORMANCE: Fast production and power efficient.
¡´ FEATURES: Guaranteed
high quality with easy operation, saving labor
cost.
¡´ WIRE FEEDER: Two
kinds of automatic power reels are provided:
¡@(1) FS-1HP,
maximum capacity of 300kgs of wires;
¡@(2) FS-2HP,
maximum of 1,000kgs wires.
¡´ POWER REQUIREMENTS:
Power transformers will be installed to satisfy
power
¡@requirements of different countries. International
power safety standards will also
¡@be met.
¡´ OPERATING SPACE:
A space of 7 meter by 3 meters will be needed
to install and
¡@ operate the machine (including main machine
and wire feeder).
|
|
| |
|
 |
|
| |
|
