| YSM
series |
|
|
|

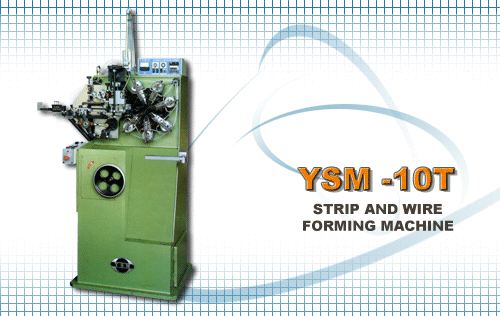

| Model |
YSM-10T |
|
Length of wire Feeding |
150
mm |
|
Hardness of wire |
80
(Carbon) |
|
Wire Size |
0.1
- 1.0 mm |
|
Width of Strip wire |
10
mm |
|
Thickness of Strip Wire |
0.04-0.5
mm |
|
Punching Power |
1500
KG |
|
Processing Speed |
250
Springs per minute |
|
Slide Power |
400
KG |
|
Motor Rating |
3HP/2.2
KW |
|
Packing Dimensions |
1300*900*1800
m/m |
|
Gross Weight |
700
KG |
|
|
|
|
| |

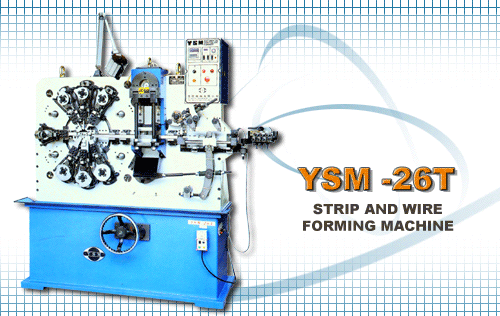

| Model |
YSM-26T |
| Length
of wire Feeding |
200
mm |
|
Hardness of wire |
80
(Carbon) |
|
Wire Size |
0.6
- 2.5 mm |
|
Width of Strip wire |
30
(Carbon) |
|
Thickness of Strip Wire |
0.3-1.2
mm |
|
Punching Power |
8500
KG |
|
Processing Speed |
200
Springs per minute |
|
Slide Power |
1500
KG |
|
Motor Rating |
5
HP/ 3.7 KW |
|
Packing Dimensions |
1900*990*1900
m/m |
|
Gross Weight |
1800
KG |
|
|
|
| |

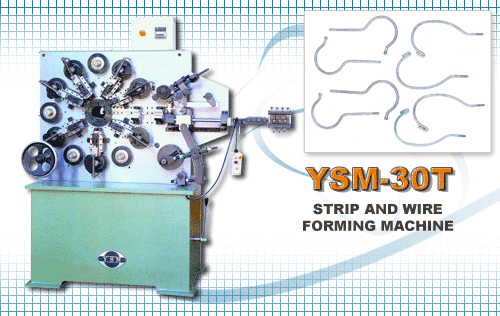

| Model |
YSM-30T |
|
Length of wire Feeding |
200
mm |
|
(Carbon) Hardness of wire |
80
(Carbon) |
| Wire
Size |
0.6-3.0
mm |
| Processing
Speed |
200
Springs per minute |
|
Slide Power |
1500kg |
|
Motor Rating |
3
HP/ 3.7 KW |
|
|
|
| |
|
| |

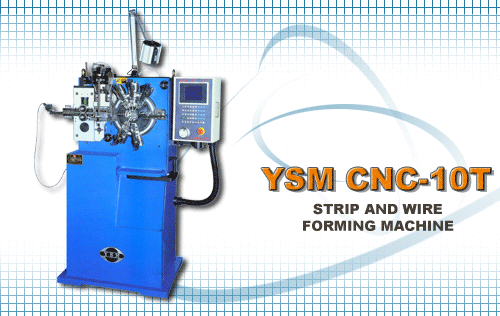

| Model |
YSM-CNC-10T |
| Length
of wire Feeding |
Unlimited |
|
Hardness of wire |
80
(Carbon) |
|
Wire Size |
0.1
- 1.0 mm |
|
Width of Strip wire |
10
mm |
|
Thickness of Strip Wire |
0.04-0.5
mm |
|
Punching Power |
1500
KG |
|
Processing Speed |
250
Springs per minute |
|
Slide Power |
400
KG |
|
Motor Rating |
750W(1HP),
1KW(1.2HP) |
|
Packing Dimensions |
1500*900*1800
m/m |
|
Gross Weight |
700
KG |
|
|
|
|

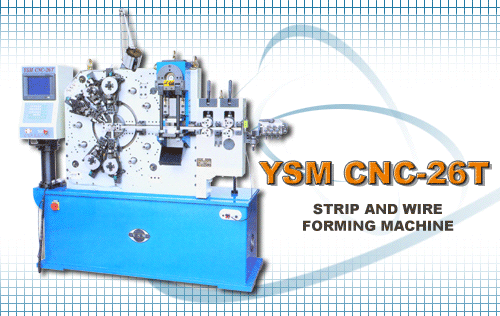

| Model
YSM CNC-26T |
|
Processing Dimension |
Wire
Size (Wire Diameter) |
0.6-2.5
mm |
| Width
of Strip wire |
30
mm |
|
Thickness of Strip Wire |
0.3-1.2
mm |
|
Hardness of wire |
80
(CARBON) |
|
Length of wire Feeding |
Unlimited |
|
Proching Speed |
200
pcs/min |
|
Pressure |
Punching Prossure |
8.5
Ton |
|
Silde Power |
1.5
Ton |
|
Processing Type |
Silde Type |
37
mm |
|
Press Processing Type |
12
mm |
|
Power |
Cam Axis |
4.5
HP (3.5KW) |
|
Feeding Axis |
2.0
HP (1.5KW) |
|
Press |
4.5
HP (3.5KW) |
|
Coil Heart |
0.5
HP (400 W) |
| Machine |
Appearance Size |
2250
* 780 * 1800 m/m |
|
Weight |
2500
kg |
|
|
|
|
 |

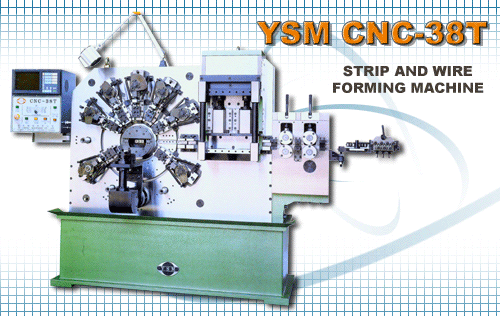

| Model
YSM CNC-38T |
|
Processing Dimension |
Wire
Size (Wire Diameter) |
1.5-5.0
mm |
| Width
of Strip wire |
50
mm |
|
Thickness of Strip Wire |
0.8-2.0
mm |
|
Hardness of wire |
80
(CARBON) |
|
Length of wire Feeding |
Unlimited |
|
Proching Speed |
150
pcs/min |
|
Pressure |
Punching Prossure |
30
Ton |
|
Silde Power |
6.5
Ton |
|
Processing Type |
Silde Type |
42
mm |
|
Press Processing Type |
16
mm |
|
Power |
Cam Axis |
4.5
HP (3.5KW) |
|
Feeding Axis |
2.0
HP (1.5KW) |
|
Press |
4.5
HP (3.5KW) |
|
Coil Heart |
0.5
HP (400 W) |
| Machine |
Appearance Size |
3000
* 900 * 1900 m/m |
|
Weight |
3800
kg |
|
|
|
|
