2-axis
CNC coilers |
 |
|
SPECIFICATIONS
OF CNC SPRING SERIES |
| MODEL
NO. |

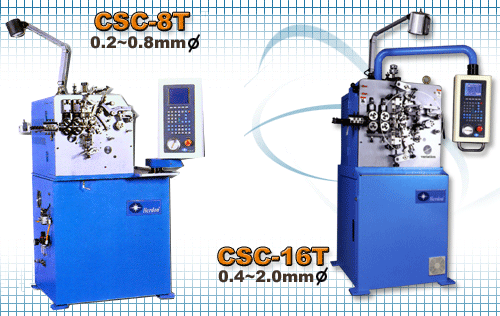

CSC-08T |
CSC-16T |
| Forming
Ability |
Wire
Size |
0.2~0.8
£p |
0.4~2.0
£p |
| Cam
Info |
Max
Value |
¡Ó359.99 |
¡Ó359.99 |
| Min
Value |
¡Ó0.01 |
¡Ó0.01 |
| Max
Speed |
700rpm |
400rpm |
| Feed
Info |
Max
Value |
¡Ó99999.99 |
¡Ó99999.99 |
| Min
Value |
¡Ó0.01 |
¡Ó0.01 |
| Max
Speed |
210M/min |
150M/min |
| Third Axi Info |
Max
Value |
|
¡Ó359.99 |
| Min
Value |
¡Ó00.01 |
| Max
Speed |
300rpm |
| Motor Info |
Cam Motor |
1.0KW |
2.7KW |
| Feed Motor |
1.0KW |
2.7KW |
| O. D. Motor |
200W |
750W |
| M/C Info |
Weight |
400KG |
700KG |
| Dimension |
90X88X150 |
135X80X175 |
| Others |
Max O. D. |
20mm |
40mm |
| Coiling Ratio |
S¡Ù3 |
S¡Ù3 |
| Axes Control |
MAX 3 |
MAX 3 |
| Roller Number |
2PCS |
4PCS |
| Feed Length |
Unlimited |
Unlimited |
| Ambient Temp |
0~45¢J |
0~45¢J |
| Cooling Method |
Internal fan cooling |
Internal fan cooling |
| Voltage |
AC 220V 3£p |
AC 220V 3£p |
| We
reserve the right to modify machine specifications
for reason of improvement without prior notice! |
|
|
 |
| SPECIFICATIONS
OF CNC SPRING SERIES |
| MODEL
NO. |

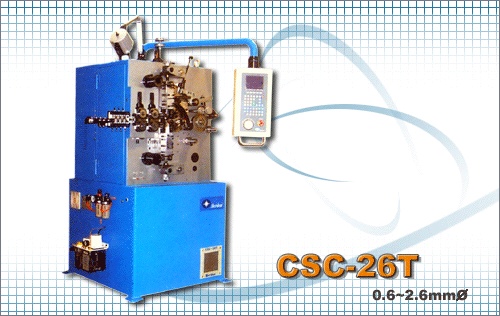

CSC-26T |
| Forming
Ability |
Wire
Size |
1.0~2.6
£p |
| Cam
Info |
Max
Value |
¡Ó359.99 |
| Min
Value |
¡Ó0.01 |
| Max
Speed |
250rpm |
| Feed
Info |
Max
Value |
¡Ó99999.99 |
| Min
Value |
¡Ó0.01 |
| Max
Speed |
120M/min |
| Third Axi Info |
Max
Value |
¡Ó359.99 |
| Min
Value |
¡Ó00.01 |
| Max
Speed |
150rpm |
| Motor Info |
Cam Motor |
3.5KW |
| Feed Motor |
4.5KW |
| O. D. Motor |
1KW |
| M/C Info |
Weight |
1000KG |
| Dimension |
163X90X180 |
| Others |
Max O. D. |
60mm |
| Coiling Ratio |
S¡Ù3 |
| Axes Control |
MAX 3 |
| Roller Number |
4PCS |
| Feed Length |
Unlimited |
| Ambient Temp |
0~45¢J |
| Cooling Method |
Internal fan cooling |
| Voltage |
AC 220V 3£p |
| We
reserve the right to modify machine specifications
for reason of improvement without prior notice! |
|
|
 |
| SPECIFICATIONS
OF CNC SPRING SERIES |
| MODEL
NO. |
CSC-50T |
CSC-80T |
| Forming
Ability |
Wire
Size |
2.0~5.0
£p |
3.0~8.0
£p |
| Cam
Info |
Max
Value |
¡Ó359.99 |
¡Ó359.99 |
| Min
Value |
¡Ó0.01 |
¡Ó0.01 |
| Max
Speed |
190rpm |
100rpm |
| Feed
Info |
Max
Value |
¡Ó99999.99 |
¡Ó99999.99 |
| Min
Value |
¡Ó0.01 |
¡Ó0.01 |
| Max
Speed |
60M/min |
55M/min |
| Third Axi Info |
Max
Value |
¡Ó359.99 |
¡Ó359.99 |
| Min
Value |
¡Ó00.01 |
¡Ó00.01 |
| Max
Speed |
60rpm |
60rpm |
| Motor Info |
Cam Motor |
11KW |
15KW |
| Feed Motor |
11KW |
22KW |
| O. D. Motor |
2.0KW |
4.5KW |
| M/C Info |
Weight |
2500KG |
6000KG |
| Dimension |
205x155x192 |
308X216X200 |
| Others |
Max O. D. |
80mm |
130mm |
| Coiling Ratio |
S¡Ù3 |
S¡Ù3 |
| Axes Control |
MAX 3 |
MAX 3 |
| Roller Number |
6PCS |
6PCS |
| Feed Length |
Unlimited |
Unlimited |
| Ambient Temp |
0~45¢J |
0~45¢J |
| Cooling Method |
Internal fan cooling |
Internal fan cooling |
| Voltage |
AC 220V 3£p |
AC 220V 3£p |
| We
reserve the right to modify machine specifications
for reason of improvement without prior notice! |
|
|
|
| |
|
 |
|
| |
|
