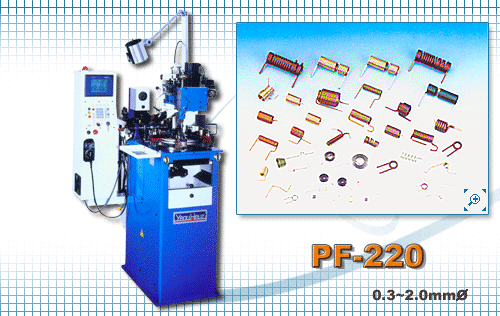

2-axis Air Coil Former
Wire diameter (Magnet wire) 0.3~2.0 mm
Max. length of front leg 50 mm
Max. length of rear leg 50 mm
Max. length of wire feed 100 mm
Spindle Axis Y Axis
Max. spindle vertical Stroke 40mm
Min. value กำ 0.1 Degree
Max. value กำ 359.9 Degree
Max.coils 999 Coil
Working direction Clockwise / Anticlockwise
Home action Unlimited
Motor capacity AC750W
Cam axis X Axis
Min. value กำ 0.1 Degree
Max. value กำ 359.9 Degree
Max. production speed 120 RPM
Motor capacity AC750W
Power 3p 220V 50/60Hz
Pheumatic air pressure 4-5 kg/cm2
Machine gross weight 350 kg
Machine dimension 142*90*180 cm


Winston Tech Industrial Corp.
8F-2, No. 280 YanPing North Road Sec. 2 103 Taipei City, Taiwan
TEL:+886-2-2557-4318, 2557-3843 FAX:+886-2-81924305, 2557-8549 E-mail:service@winstech.com.tw
